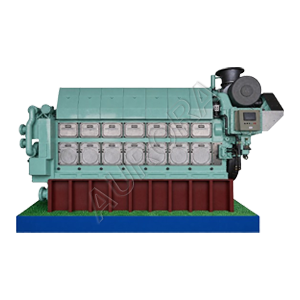

ZC8270ZLC ZICHAI Marine Diesel Engine is an 8-cylinder, 4-stroke in-line marine diesel engine rated at 2560 kW /3480 PS at 800 r/min, with a 270 mm bore and 385 mm stroke. Designed for marine propulsion applications, the ZC8270ZLC combines reliable operation with fuel-efficient performance. It is suitable for main propulsion on cargo vessels, tugboats, engineering vessels and other commercial vessels.
ZC8270ZLC Engine Technical Specifications
| Engine Model | ZC8270ZLC |
| Rated Power | 2560 kW / 3480 PS |
| Rated Speed | 800 r/min |
| Number of Cylinders | 8 |
| Bore x Stroke | 270 x 385 mm |
| Fuel Consumption (g/kW·h) | 185 |
| Mean Effective Pressure | 2.18 MPa |
| Dimensions (L x W x H)* | 5992 x 2317 x 3660 mm |
| Weight | Approx. 36,300 kg |
| Emission Standard | IMO Tier II |
* Dimensions are for reference only. Please refer to the final technical drawing.
Key Features of the ZC8270ZLC Marine Diesel Engine
- 4-stroke marine diesel engine
- 2560 kW rated power at 800 r/min
- 8-cylinder in-line configuration
- Reliable and fuel-efficient performance
- Robust design for marine propulsion applications
- Spare parts and technical support available
ZICHAI ZC8270ZLC Spare Parts
ZICHAI ZC8270ZLC spare parts are available for engine maintenance, repair and overhaul. For spare parts inquiries, please provide the engine model, serial number, nameplate photo and required part information for accurate identification and quotation.
- ZC8270ZLC Marine Engine Datasheet
- ZC8270ZLC Diesel Engine Outline Size Installation Diagram
- ZC8270ZLC Diesel Engine Operation Manual
- ZC8270ZLC Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
