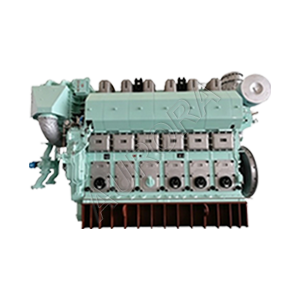

ZC6330ZLC-9 ZICHAI Marine Diesel Engine is an 6-cylinder, 4-stroke in-line marine diesel engine rated at 2242 kW /3050 PS at 600 r/min, with a 330 mm bore and 440 mm stroke. Designed for marine propulsion applications, the ZC6330ZLC-9 combines reliable operation with fuel-efficient performance. It is suitable for main propulsion on cargo vessels, tugboats, engineering vessels and other commercial vessels.
ZC6330ZLC-9 Engine Technical Specifications
| Engine Model | ZC6330ZLC-9 |
| Rated Power | 2242 kW / 3050 PS |
| Rated Speed | 600 r/min |
| Number of Cylinders | 6 |
| Bore x Stroke | 330 x 440 mm |
| Fuel Consumption | 190+5% g/kW·h At rated power |
| Mean Effective Pressure | 1.987 MPa |
| Dimensions (L x W x H)* | 5761.7 x 2442 x 3867 mm |
| Weight | Approx. 34,450 kg |
| Emission Standard | IMO Tier II |
* Dimensions are for reference only. Please refer to the final technical drawing.
Key Features of the ZC6330ZLC-9 Marine Diesel Engine
- 4-stroke marine diesel engine
- 2242 kW rated power at 600 r/min
- 6-cylinder in-line configuration
- Reliable and fuel-efficient performance
- Robust design for marine propulsion applications
- Spare parts and technical support available
ZICHAI ZC6330ZLC-9 Spare Parts
ZICHAI ZC6330ZLC-9 spare parts are available for engine maintenance, repair and overhaul. For spare parts inquiries, please provide the engine model, serial number, nameplate photo and required part information for accurate identification and quotation.
- ZC6330ZLC-9 Marine Engine Datasheet
- ZC6330ZLC-9 Diesel Engine Outline Size Installation Diagram
- ZC6330ZLC-9 Diesel Engine Operation Manual
- ZC6330ZLC-9 Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
