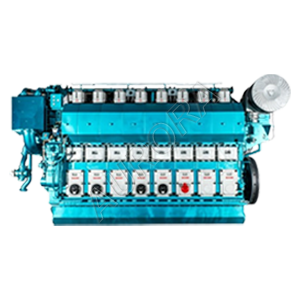

8N350ZLC ZICHAI Marine Diesel Engine is an 8-cylinder, 4-stroke in-line marine diesel engine rated at 4778 kW / 6500 PS at 650 r/min, with a 350 mm bore and 450 mm stroke. Designed for marine propulsion applications, the 8N350ZLC combines reliable operation with fuel-efficient performance. It is suitable for main propulsion on cargo vessels, tugboats, engineering vessels and other commercial vessels.
8N350ZLC Engine Technical Specifications
| Engine Model | 8N350ZLC |
| Rated Power | 4778 kW / 6500 PS |
| Rated Speed | 650 r/min |
| Number of Cylinders | 8 |
| Bore x Stroke | 350 x 450 mm |
| Fuel Consumption | 190 g/kW·h (MCR) 185(75% MCR) |
| Mean Effective Pressure | 2.547 MPa |
| Dimensions (L x W x H)* | 6823.7 x 2655 x 4141 mm |
| Weight | Approx. 47,000 kg |
| Emission Standard | IMO Tier II |
* Dimensions are for reference only. Please refer to the final technical drawing.
Key Features of the 8N350ZLC Marine Diesel Engine
- 4-stroke marine diesel engine
- 4778 kW rated power at 650 r/min
- 8-cylinder in-line configuration
- Reliable and fuel-efficient performance
- Robust design for marine propulsion applications
- Spare parts and technical support available
ZICHAI 8N350ZLC Spare Parts
ZICHAI 8N350ZLC spare parts are available for engine maintenance, repair and overhaul. For spare parts inquiries, please provide the engine model, serial number, nameplate photo and required part information for accurate identification and quotation.
- 8N350ZLC Marine Engine Datasheet
- 8N350ZLC Diesel Engine Outline Size Installation Diagram
- 8N350ZLC Diesel Engine Operation Manual
- 8N350ZLC Spare Parts Atlas
* Specifications subject to change without prior notice in the interest of continual product improvement. Contact our sales representative for engineering specifications, survey society approvals and classifications.
